SNDWAY SW-65A Vibration Meter

SNDWAY SW-65A Vibration Meter in Sri Lanka

2-Axis Digital Vibration Analyzer for Rotating Machinery

The SNDWAY SW-65A Vibration Meter is a sophisticated, 2-axis diagnostic instrument engineered for comprehensive machinery inspection. It provides simultaneous, high-accuracy multi-directional readings for engineers in Sri Lanka managing complex engines, generators, and centrifugal pump systems.

Explore our complete lineup of Vibration Meters – advanced specifications, features, and diagnostic tools in Sri Lanka!

With its ability to measure X and Y axes simultaneously, clear digital interface, and robust sensitivity, this analyzer is an invaluable asset for heavy industry professionals looking to isolate complex mechanical unbalance and structural looseness rapidly.

Technical Specifications

Acceleration (Peak): 0.1~199.9m/s² | Low Freq: 10Hz~1KHz | High Freq: 1KHz~10KHz

Velocity (True RMS): 0.1~199.9mm/s | Frequency: 10Hz~1KHz

Displacement (Peak-Peak): 0.001~1.999mm | Frequency: 10Hz~500Hz

Measurement Error: ±(5% + 2 digits) across all parameters

Key Features

2-Axis Analysis: Biaxial sensor capability (X, Y) for comprehensive spatial machine diagnostics

Sensor Technology: Premium piezoelectric sensors for excellent frequency response

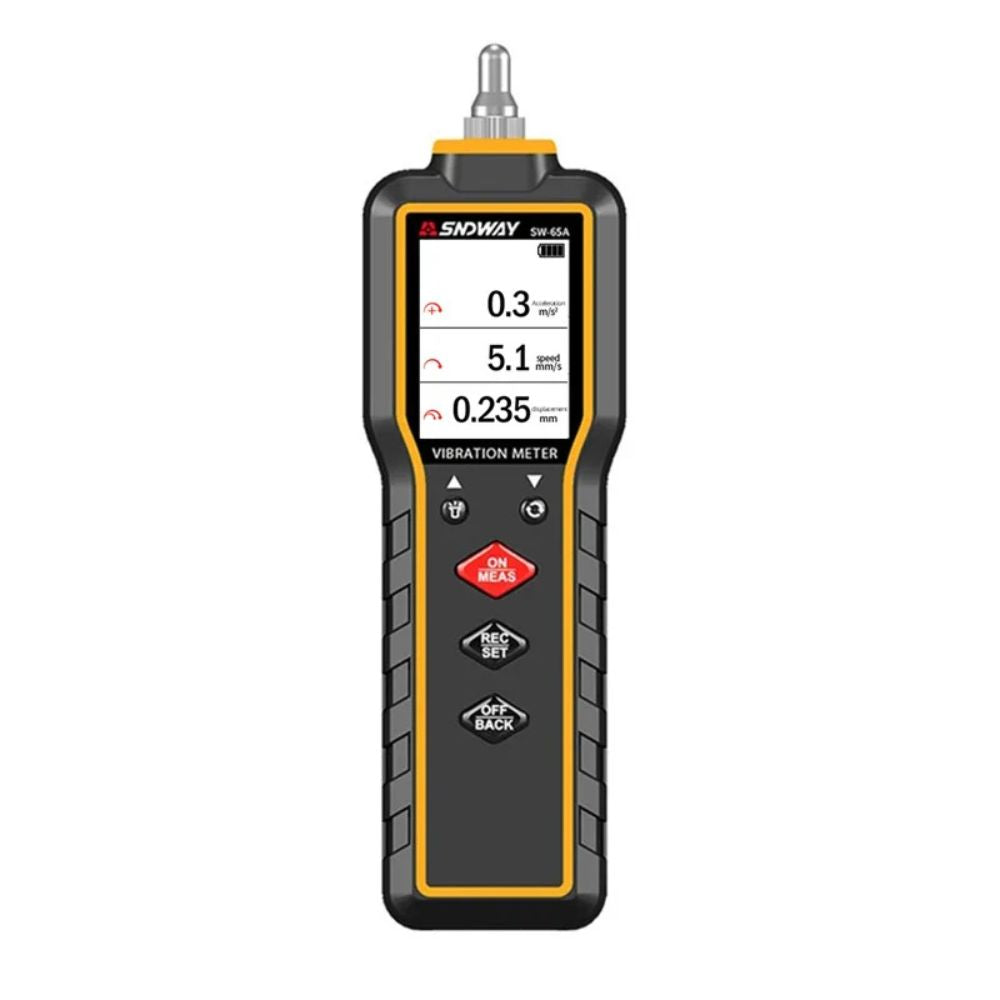

Display: High-resolution LCD providing simultaneous 3-axis parameter readouts

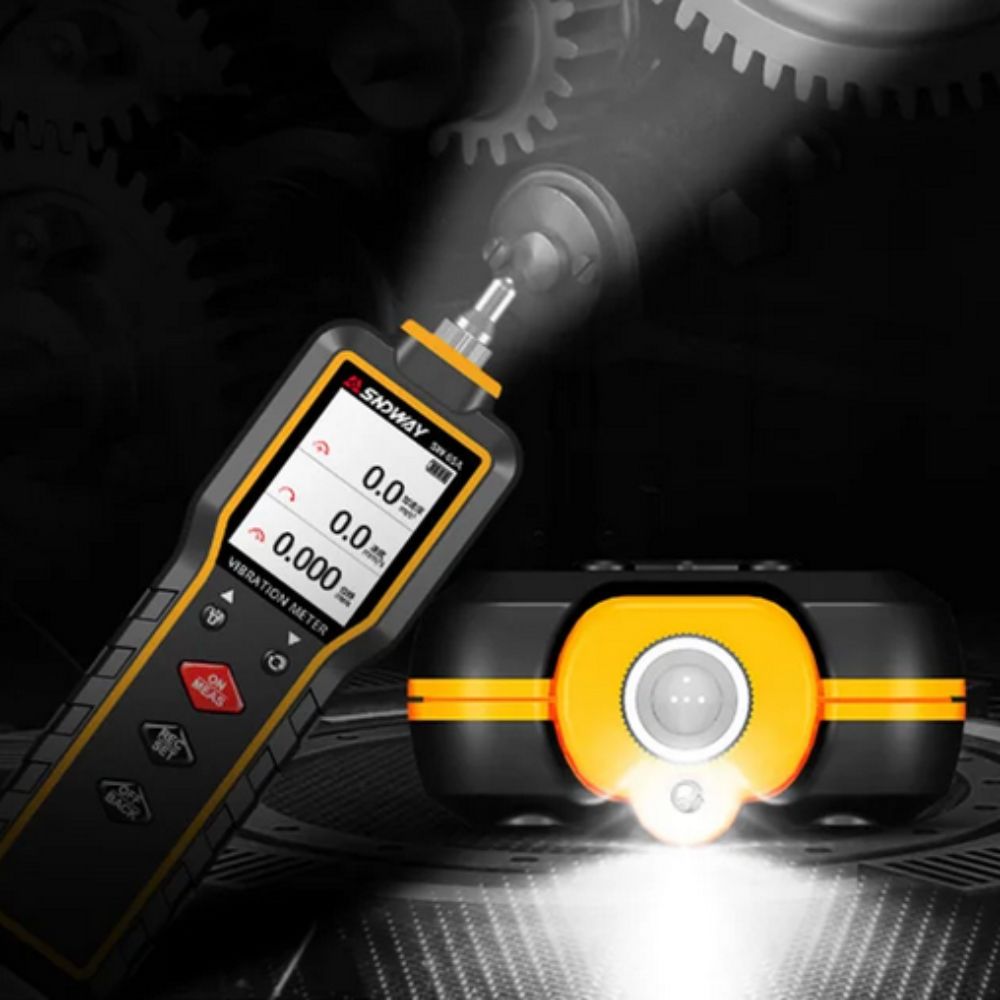

Functions: Dynamic range selection, peak value hold, and integrated flashlight for dark areas

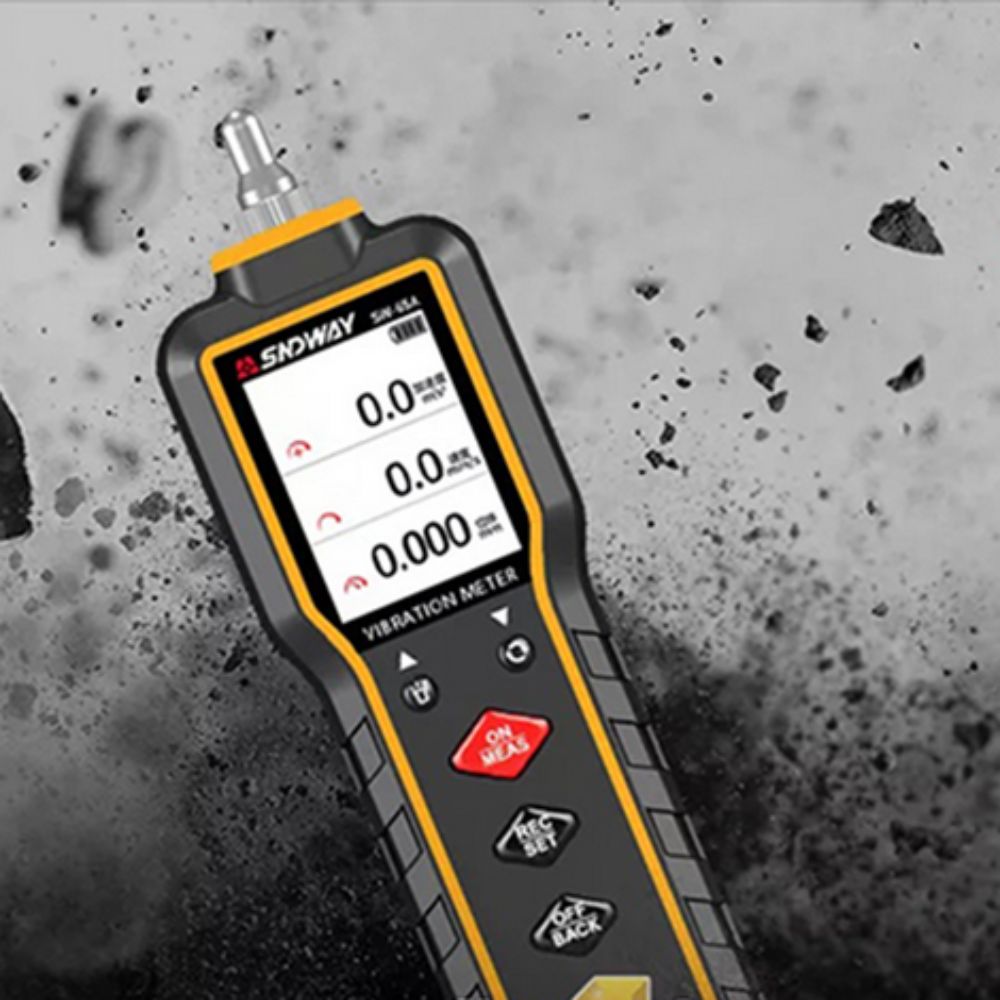

Build: Industrial-grade casing designed for heavy-duty field and plant use

Applications

Triaxial vibration analysis on large-scale diesel generators

Structural vibration testing on heavy industrial centrifugal pumps

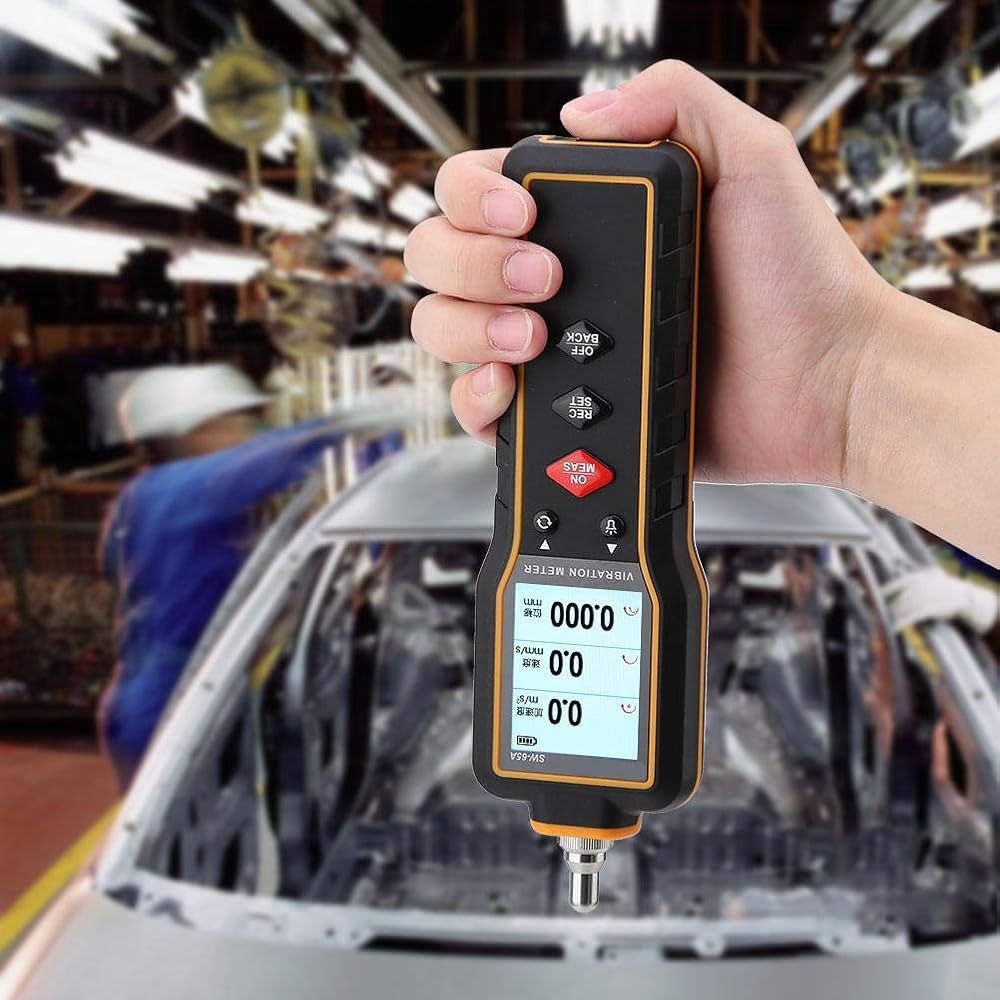

Engine diagnostics and comprehensive rotating machinery troubleshooting

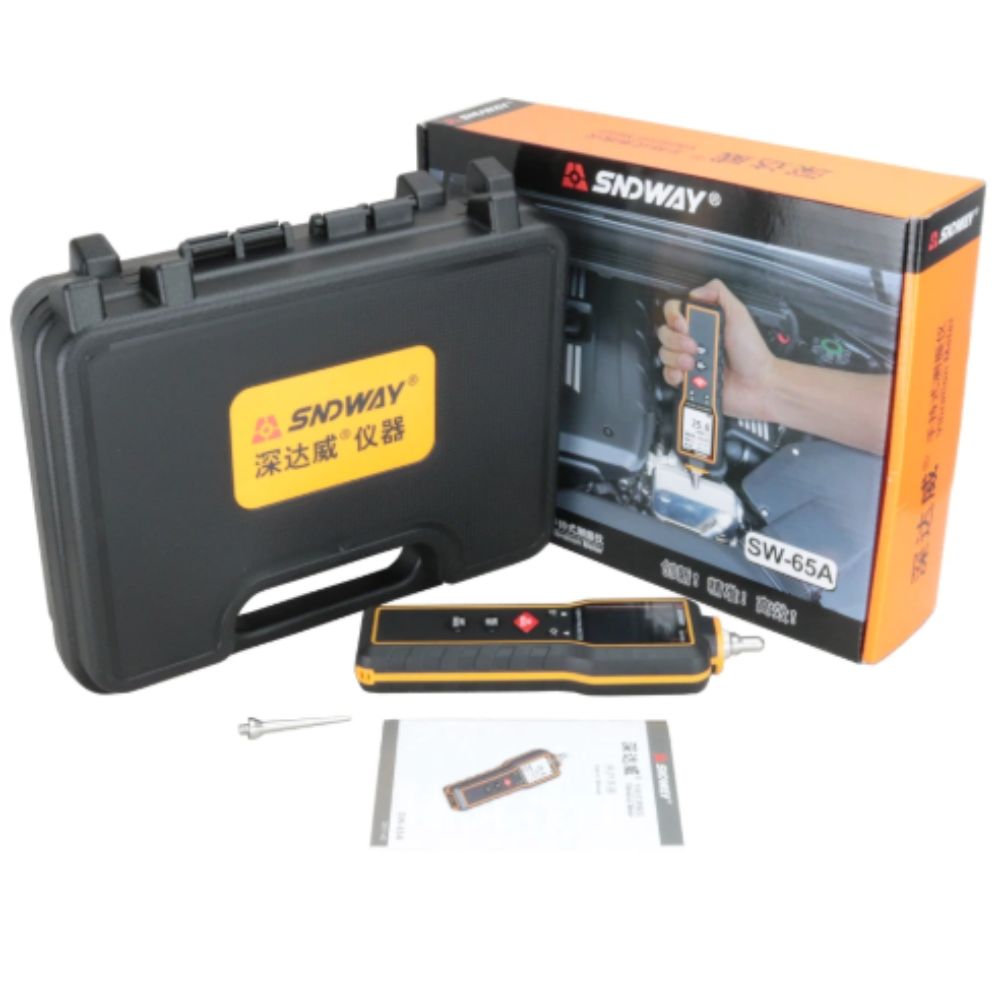

Package Includes

1 x SNDWAY SW-65A Vibration Meter main unit

2-axis vibration sensor probe and connecting cable

Power supply accessories

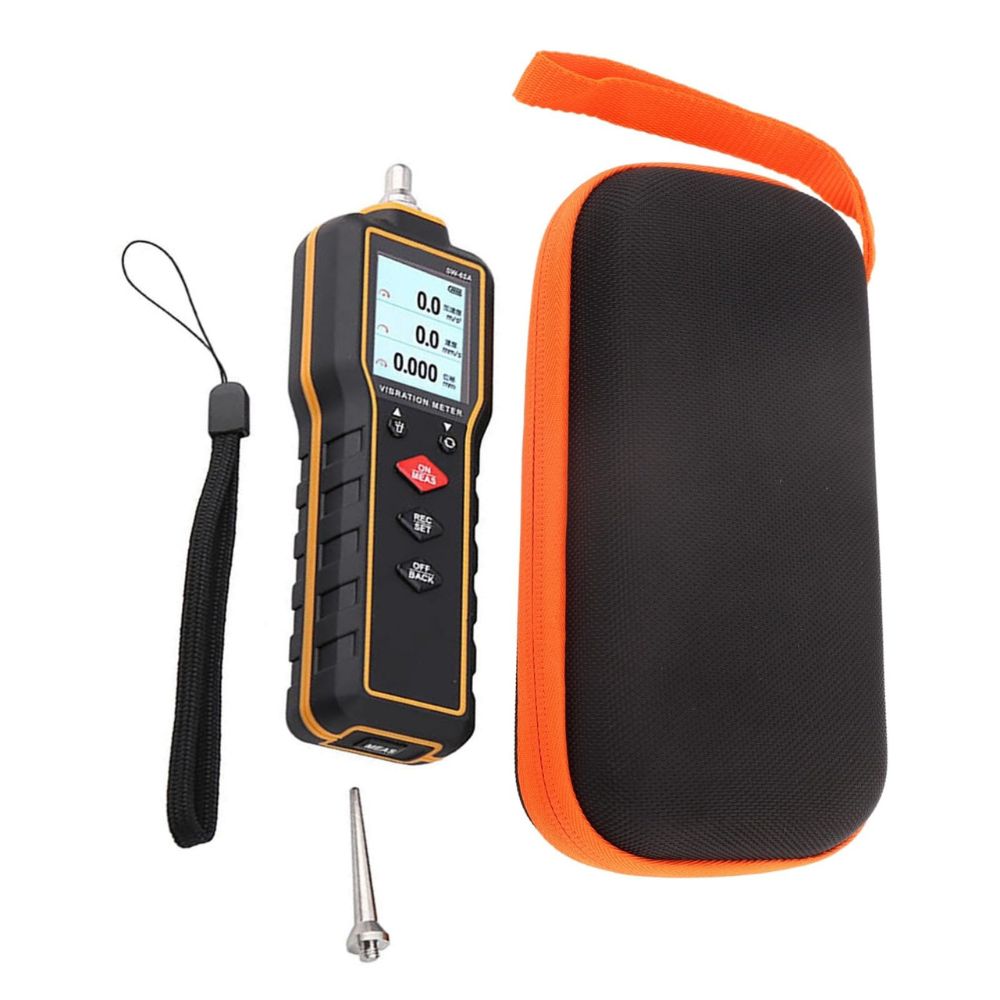

Heavy-duty protective carrying case

English user manual

If you prefer a highly compact, single-axis tool for quick inspection routes, the UNI-T UT315A Digital Vibration Tester Data Logger offers a streamlined alternative with PC logging.

Downloads

📄 Download SNDWAY SW-65A User Manual
