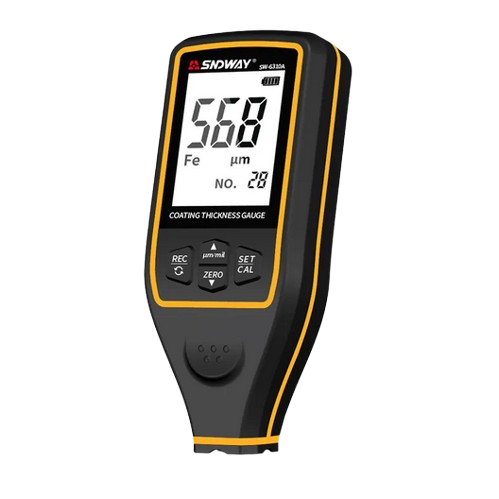

SNDWAY SW-6310A Coating Thickness Gauge

The SNDWAY SW6310A Coating Thickness Gauge is a practical and accurate measuring tool designed to evaluate paint and coating thickness on both magnetic and non-magnetic substrates. With a measuring range up to 1700 µm, this device is widely used for automotive inspections, workshops, laboratories, and quality control applications.

Built with reliable calibration functions and data memory, the SW6310A ensures consistent measurement results for professionals and everyday users alike.

Key Features

Wide Measuring Range: 0–1700 µm (±2.5% accuracy)

Calibration Options: Zero Spot Calibration & Firm Calibration for consistent accuracy

Resolution: 1-digit decimal display for precise readings

Substrate Compatibility: Works on both magnetic (iron/steel) and non-magnetic (aluminum) surfaces

Minimum Measuring Requirements:

Convex curvature ≥ 5 mm

Concave curvature ≥ 30 mm

Minimum measuring area: 25 × 25 mm

Minimum thickness: 0.05 µm (magnetic), 0.2 µm (non-magnetic)

Data Storage: Memory for 30 measurements (retained even when powered off)

User-Friendly Display: Clear digital screen with easy-to-read results

Power Supply: 2 × 1.5V AAA batteries

Compact & Portable: Lightweight design, ideal for field and workshop use

Technical Specifications

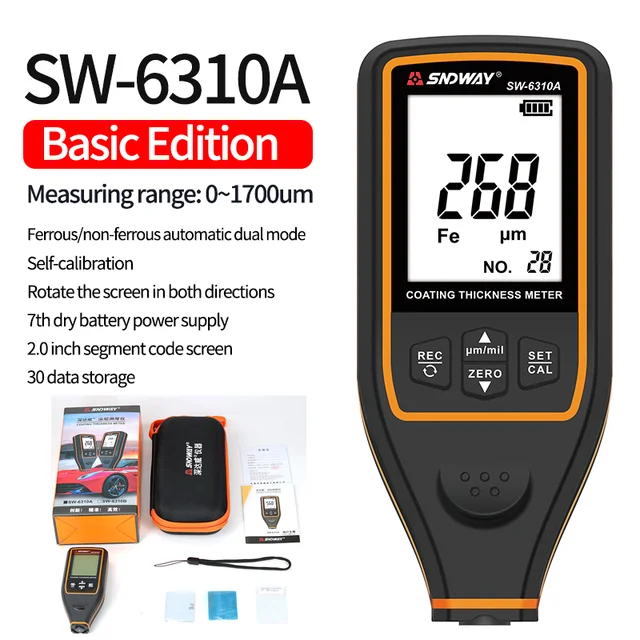

Standard Accessories

Coat Thickness Meter (SW6310A)

Aluminum substrate

Iron substrate

Calibration films (5pcs)

Tool box

Hand strap

User manual

Applications

The SNDWAY SW6310A is ideal for:

Automotive industry – Accurate paint thickness inspection for vehicles.

Workshops & car dealers – Quick detection of repainted or repaired body parts.

Laboratories – Reliable testing for coating and plating evaluations.

Quality inspection – Ensuring compliance in coating thickness standards.
