SANWA MG5000 High Voltage Insulation Tester

SANWA MG5000 High Voltage Insulation Tester | Advanced Digital Insulation Resistance Meter

Precision High Voltage Insulation Testing for Industrial and Power Equipment in Sri Lanka

The SANWA MG5000 is a high-voltage digital insulation resistance tester engineered for accurate measurement of insulation resistance in power lines and high-voltage equipment up to 5000V DC. Certified to IEC 61010-1 CAT IV 600V standards, this robust meter is ideal for electricians, engineers, and maintenance professionals ensuring electrical safety and preventive maintenance across Sri Lanka’s industrial, utility, and construction sectors.

Featuring five selectable test voltages (250V, 500V, 1000V, 2500V, 5000V) and a maximum resistance measurement capacity of up to 1 teraohm (TΩ), the MG5000 delivers fast, reliable results with a 1200-count LCD and 36-segment bar graph for intuitive visualization. Its advanced functions include Dielectric Absorption Ratio (DAR), Polarization Index (PI), auto discharge, auto hold, and data hold for enhanced operational efficiency and accuracy. Built with an IP54 dust-proof and splash-proof case, it is well suited for demanding field environments.

Key Features of the SANWA MG5000 High Voltage Insulation Tester

Wide High Voltage Test Range

Five test voltages covering 250V to 5000V DC for comprehensive insulation testing across diverse equipment.

Extensive Insulation Resistance Measurement

Measures insulation resistance up to 1TΩ with high accuracy (±5%+3 digits) and fast sampling rate of 3 tests per second.

Advanced Diagnostic Functions

Easy one-button display of Dielectric Absorption Ratio (DAR) and Polarization Index (PI) for detailed insulation analysis.

Clear Digital Display

1200-count LCD with backlight and 36-segment bar graph provides clear readings even in low light conditions.

Auto Discharge & Auto Power Save

Automatically discharges stored voltage after measurement and enters power-saving mode after 10 minutes of inactivity.

Rugged IP54 Protection

Dustproof and splashproof design with durable carry case for reliable field operation in harsh environments.

Safe & Compliant Operation

Meets IEC 61010-1 CAT IV 600V safety standards, providing secure operation in high-voltage testing contexts.

Common Applications of SANWA MG5000

Power Line & Utility Equipment Testing

Verify the integrity of insulation in power transmission and distribution systems to prevent faults and outages.

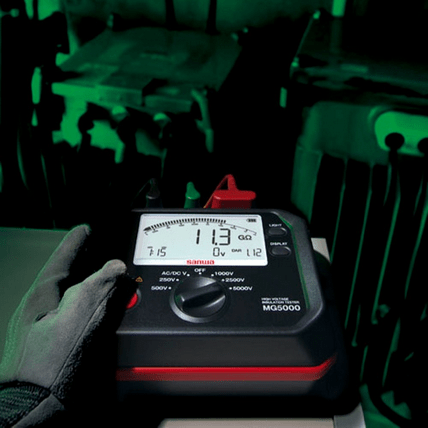

Industrial Machinery & Motor Inspections

Conduct detailed insulation resistance assessments on motors, transformers, and industrial electrical equipment.

Safety Compliance Audits

Support routine safety inspections ensuring electrical installations meet national and international safety regulations.

Technical Specifications of the SANWA MG5000

Test Voltages (DC)

250V / 500V / 1000V / 2500V / 5000V

Insulation Resistance Range

0.0～104.9MΩ to 0.0～1199GΩ (depending on test voltage)

Accuracy

±5% + 3 digits

Display

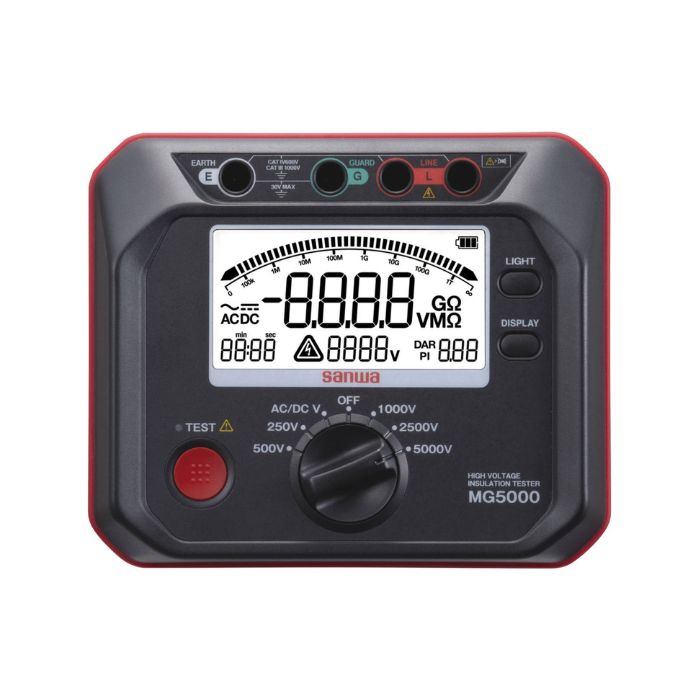

1200-count LCD with backlight, 36-segment bar graph

Advanced Functions

Dielectric Absorption Ratio (DAR), Polarization Index (PI), Auto hold, Data hold, Auto discharge

Safety Standards

IEC 61010-1 CAT IV 600V

IP Rating

IP54 dustproof and splashproof

Power Supply

8 x 1.5V alkaline batteries (LR14 C size)

Dimensions & Weight

H188mm x W225mm x D97mm / Approx. 1750g including batteries

What's in the Box?

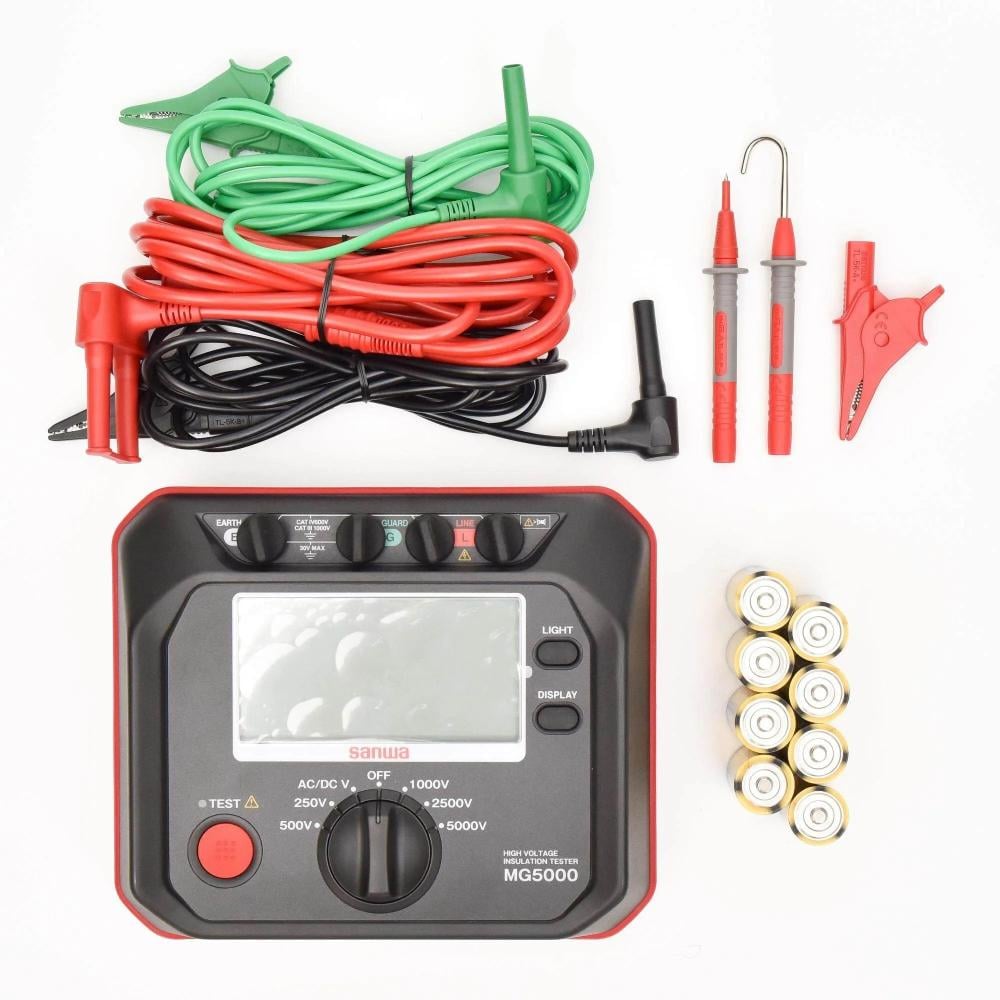

1 x SANWA MG5000 High Voltage Insulation Tester

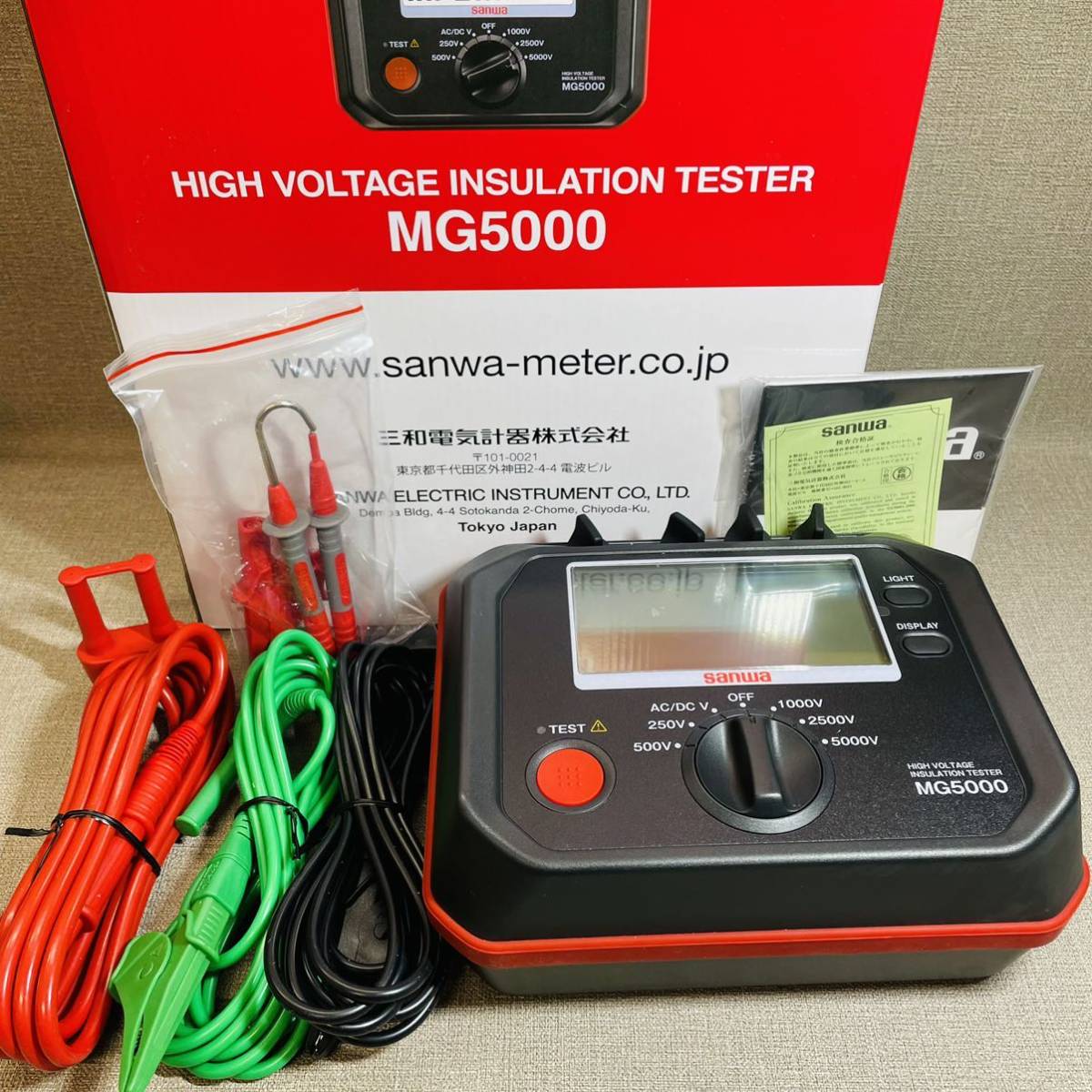

1 x Set of Test Leads

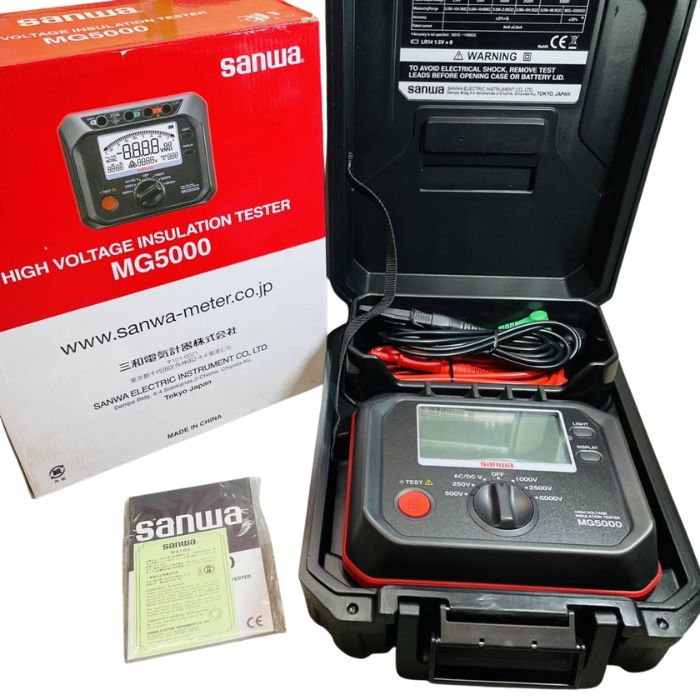

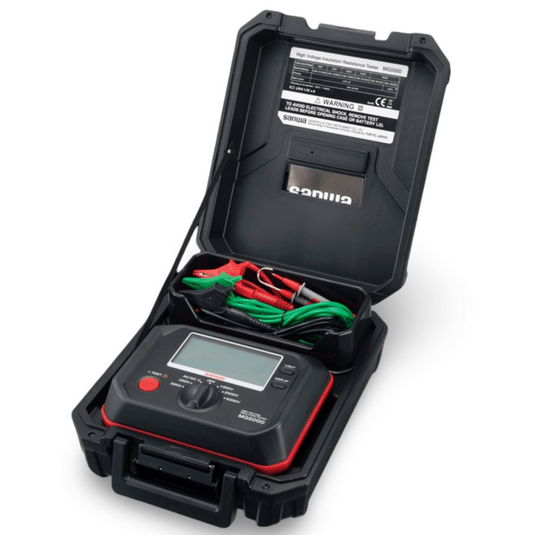

1 x Carrying Case

8 x 1.5V Alkaline Batteries (LR14 C size)

1 x Instruction Manual

Downloads

📄 Download SANWA MG5000 Data Sheet

📄 Download SANWA MG5000 User Manual
