MILESEEY TR120 Thermal Imaging Camera

MILESEEY TR120 Dual-Camera Thermal Imager

Professional Handheld Infrared Camera

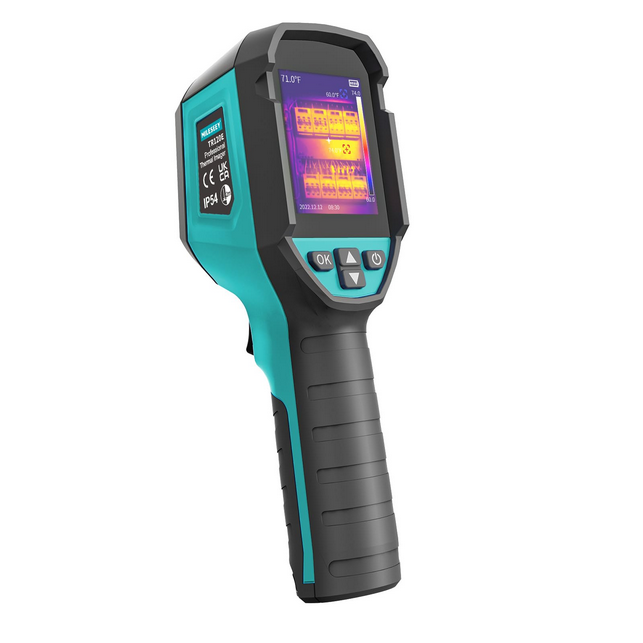

The MILESEEY TR120 is a professional handheld dual-camera infrared thermal imager designed to make fault detection faster, easier, and more accurate. Equipped with a 2.4-inch screen and advanced infrared plus visible light imaging, the TR120 allows users to clearly identify problem areas, pinpoint fault points, and capture detailed inspection results in real time.

This versatile device is an ideal choice for maintenance, electrical inspection, HVAC, mechanical diagnostics, and industrial testing. Looking for more options? Explore our full range of thermal cameras in Sri Lanka to compare models, specifications, and prices.

Key Features

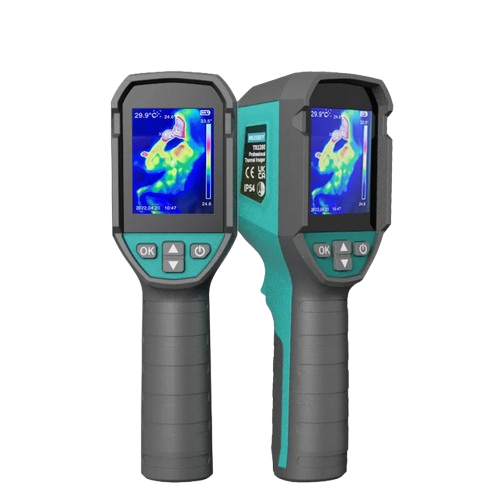

Combines infrared and visible light with a dual-camera imaging mode for precise fault detection

Features a compact 2.4-inch screen that provides clear analysis in a portable handheld design

Automatically identifies and tracks hot and cold spots with customizable high/low temperature alarms

Allows for adjustable emissivity to ensure accurate temperature measurement across different surfaces

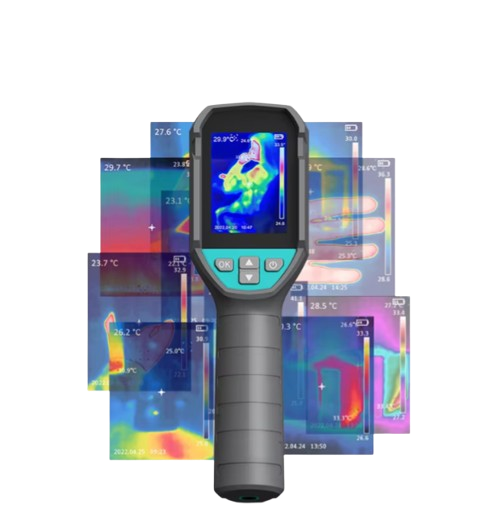

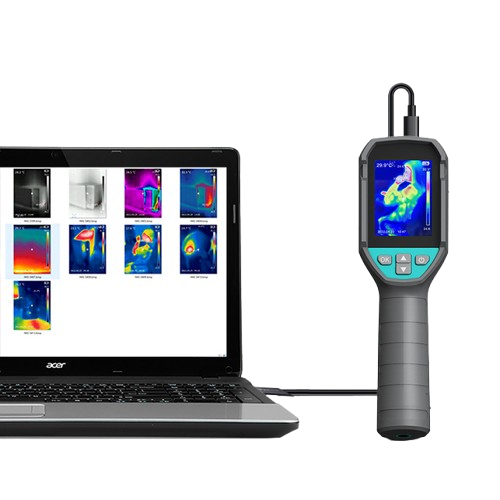

Captures and saves thermal images to an SD card, with easy export via USB Type-C for reporting

Includes a built-in 3W LED work light to ensure visibility in dark or low-light environments

Built with a rugged IP65-rated enclosure for dustproof and water-resistant protection

Powered by a long-lasting rechargeable battery with a convenient Type-C charging interface

Technical Specifications

Imaging Type

Infrared + Visible Light Dual-Camera

IR Resolution

120 × 90 pixels

Temperature Range

-20°C to 450°C

Frame Rate

<20Hz

Display

2.4-inch screen

Temperature Tracking

Automatic hot/cold spot detection

Alarms

High/Low temperature alerts

Emissivity

Adjustable (0.01–0.99)

Data Storage & Export

SD card storage with USB Type-C export

LED Work Light

3W, multiple brightness levels

Power Supply

Rechargeable lithium battery via Type-C

Protection Level

IP65 (dustproof and water-resistant)

Mounting

Standard tripod screw hole

Applications

Detects overheating components, faulty wiring, and motor issues in electrical & mechanical maintenance

Identifies heat loss, duct leaks, and insulation problems in HVAC systems

Inspects for moisture intrusion and energy efficiency in building & construction

Monitors machinery to ensure safety and prevent breakdowns in industrial testing

Enhances visibility for safe, accurate inspections during nighttime or low-light work

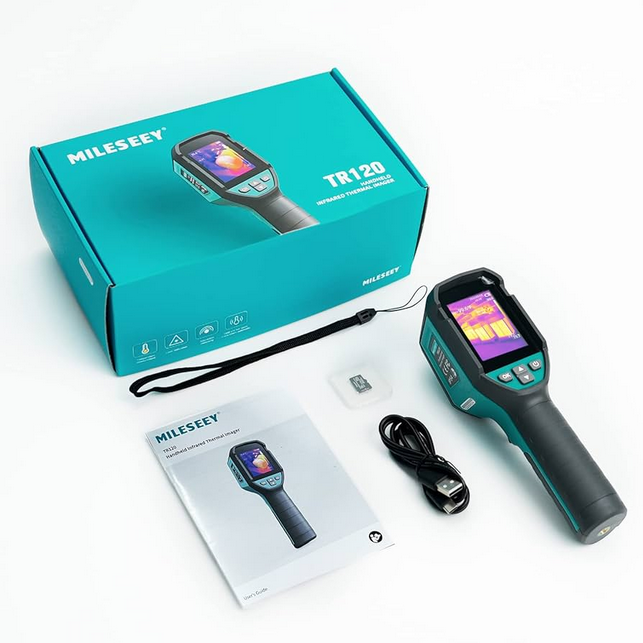

Package Includes

1 x MILESEEY TR120 Thermal Imager

1 x USB Type-C Cable

1 x SD Card

1 x User Manual

1 x Carrying Pouch

Downloads

📄 Download MILESEEY TR120 User Manual
