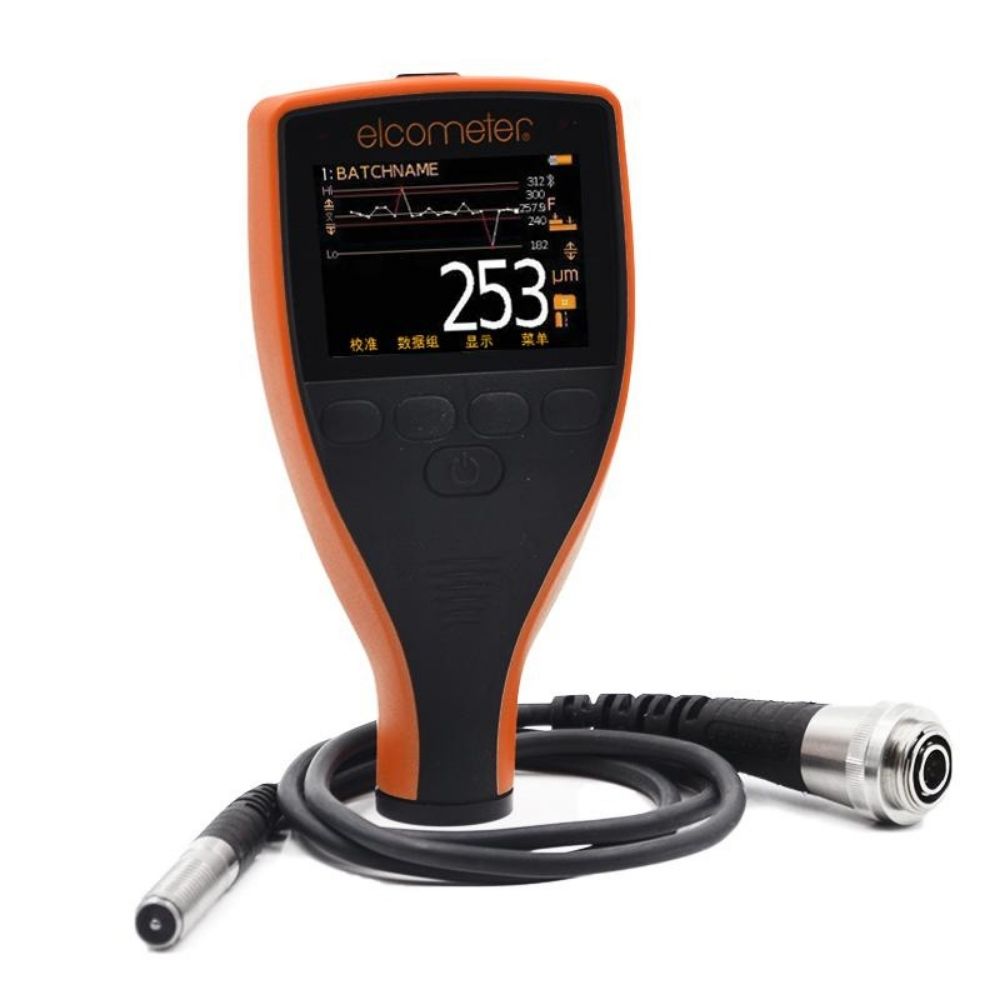

ELCOMETER 456 Separate Coating Thickness Gauge

Elcometer 456 Separate Coating Thickness Gauge in Sri Lanka

Industry-Leading Precision with Interchangeable Probe Flexibility

The Elcometer 456 Separate Coating Thickness Gauge is a premier industrial instrument engineered for unmatched accuracy and flexibility. Designed to work with a wide range of interchangeable probes, it provides reliable dry film thickness (DFT) measurements on both ferrous and non-ferrous metal substrates. With its ability to take over 70 readings per minute, it is the gold standard for professionals in protective coatings and industrial finishing.

Looking for more options? Explore our full range of coating thickness gauges in Sri Lanka to compare models, specifications, and prices.

This heavy-duty device is built to survive the toughest environments, featuring an IP64-rated rugged design that is dust and water-resistant. Whether you are measuring on smooth, rough, thin, or curved surfaces, the Elcometer 456 delivers traceable results with Bluetooth and USB connectivity, ensuring seamless data integration with ElcoMaster® software for professional reporting.

Key Features

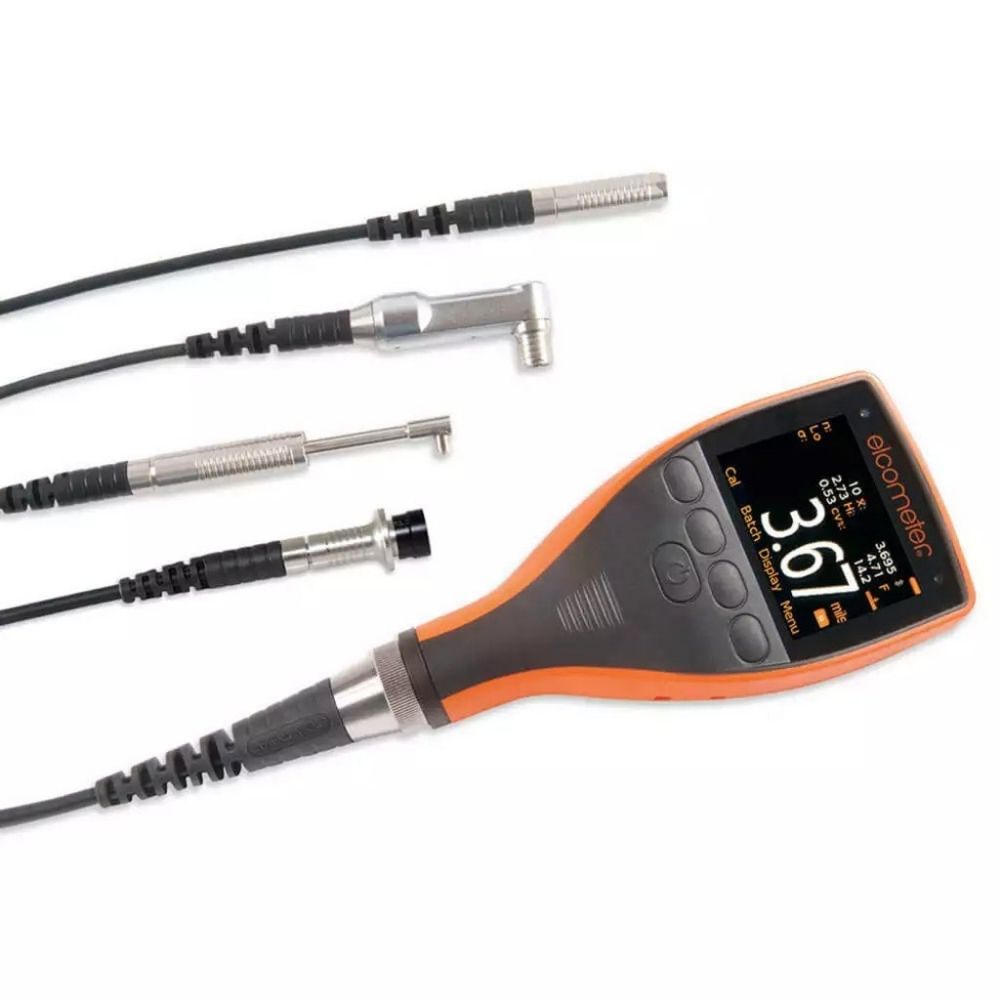

Interchangeable probe design provides maximum versatility for different applications

Unmatched measurement speed with 70+ readings per minute (140+ with Scan Probe)

High-resolution 2.4-inch color QVGA TFT display with auto-rotate functionality

Large buttons with positive feedback, ideal for use even while wearing heavy gloves

Rugged, impact-resistant, and IP64-rated for protection against dust and water

Stores up to 150,000 readings in 2,500 batches for extensive data logging

Wireless data transfer via Bluetooth to PC, Android, or iOS devices

Compliant with International Standards including ISO, ASTM, and DIN

Features an alphanumeric batch naming system for easy identification of inspection areas

Highly accurate to ±1-3% with a wide range of probe scales available

Technical Specifications

Model

Elcometer 456 Separate (Model T)

Measuring Range

0–31mm (0–1220 mils) *Dependent on probe attached

Accuracy

±1–3% or ±2.5µm

Resolution

0.1µm: 0–100µm; 1µm: 100–1500µm

Substrate Type

Ferrous (F) & Non-Ferrous (NF) via separate probes

Measurement Methods

Single / Scan Mode (with Scan Probe)

Display

2.4-inch (6cm) QVGA Color TFT

Connectivity

Bluetooth, USB (ElcoMaster® Compatible)

Data Storage

150,000 readings (2,500 batches)

Operating Temp

-10 to 50°C (14 to 122°F)

Power Supply

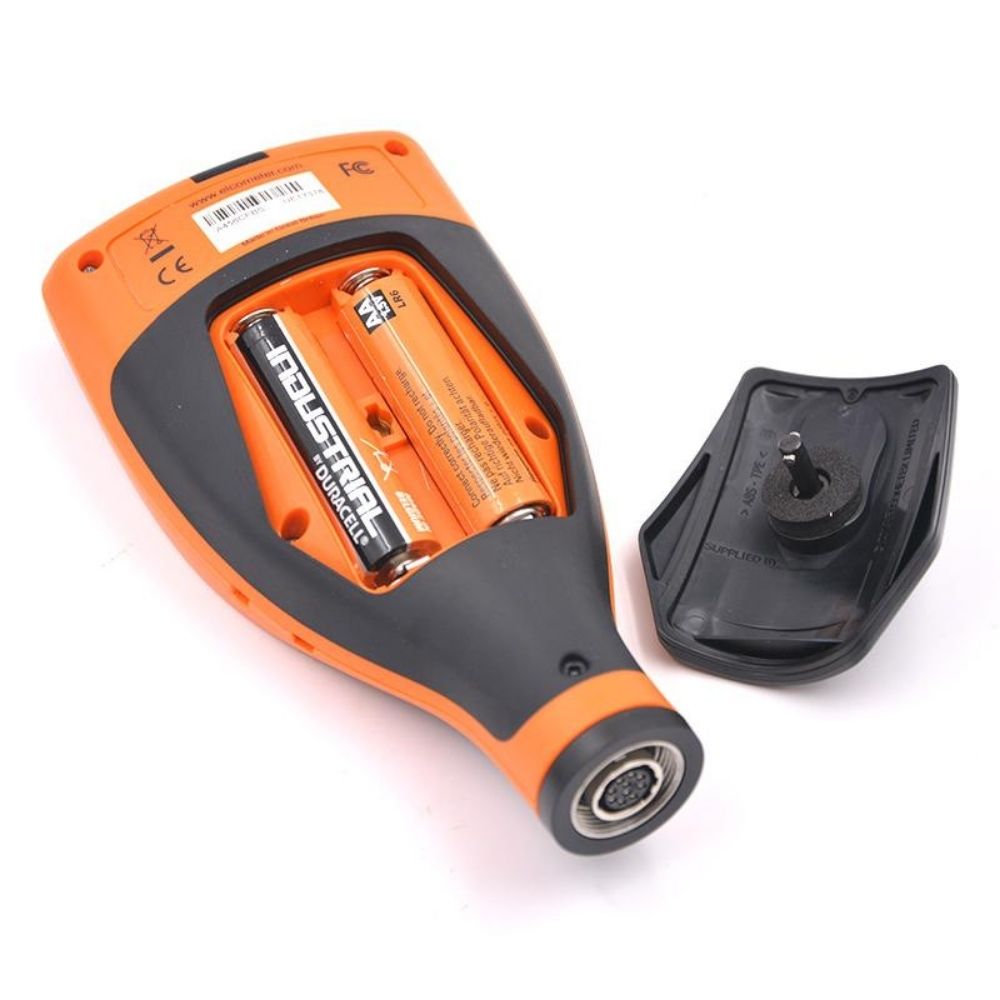

2 x AA Batteries (up to 24 hours continuous use)

Ingress Protection

IP64 (Dust and Water Resistant)

Certifications

ISO 2178, ISO 2360, ASTM D7091, BS 5411-3

Dimensions

141 × 73 × 37 mm

Weight

161 g (including batteries)

Applications

Essential for marine and offshore inspections where thick protective coatings are critical

Used in bridge and infrastructure maintenance to ensure paint thickness meets safety standards

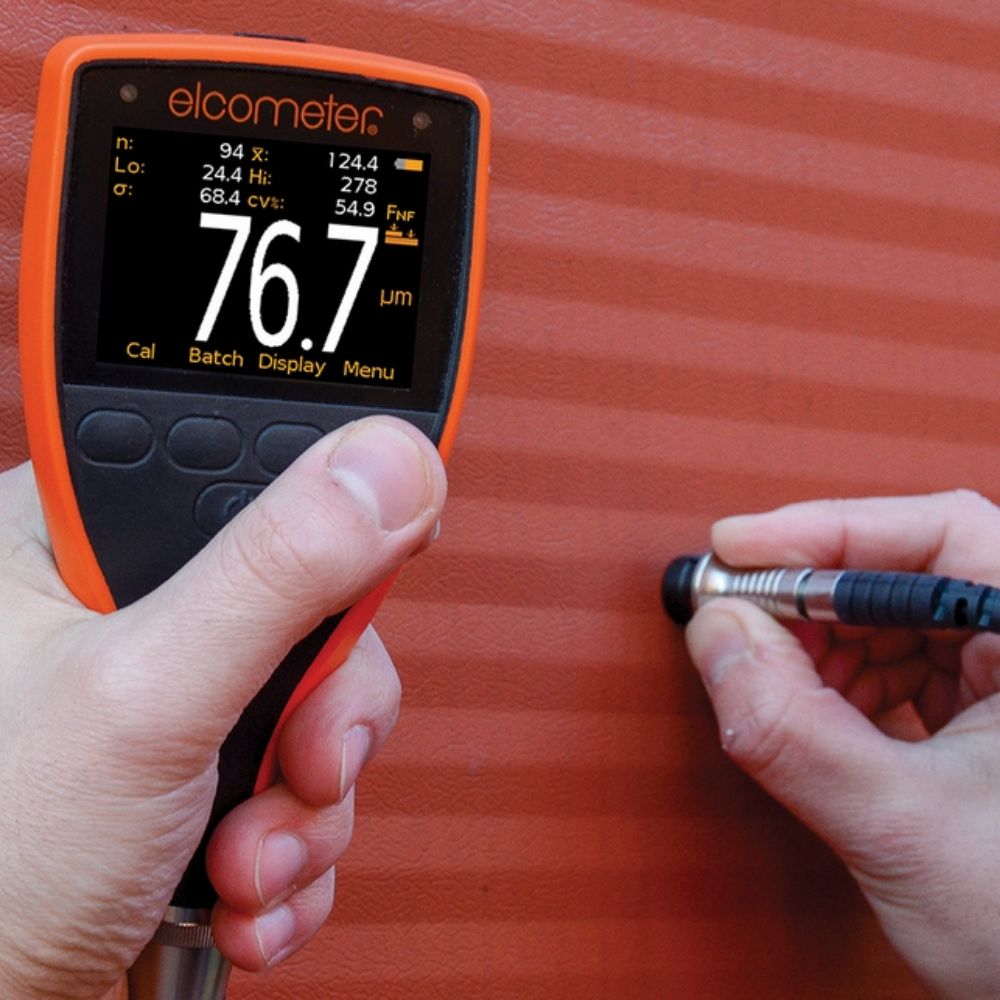

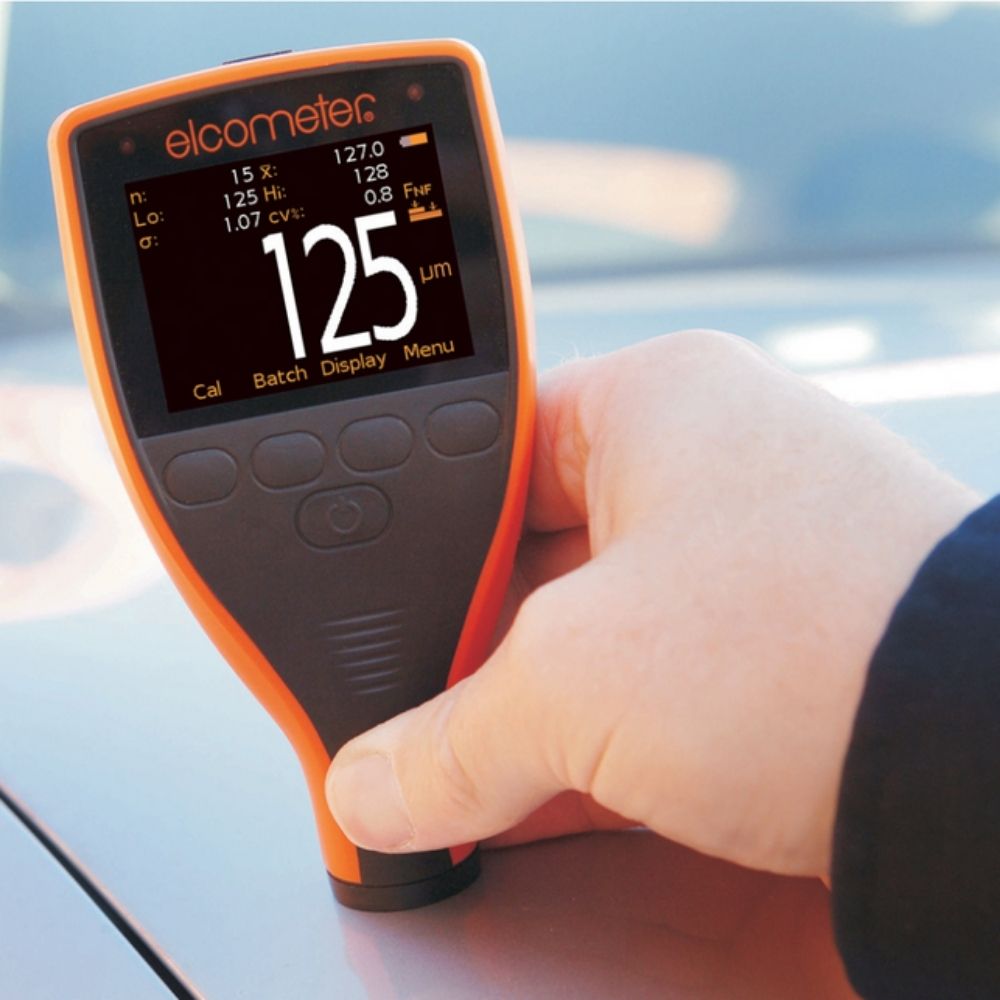

Ideal for automotive manufacturing and quality control of powder-coated components

Reliable choice for plating and galvanizing plants requiring high-precision niche measurements

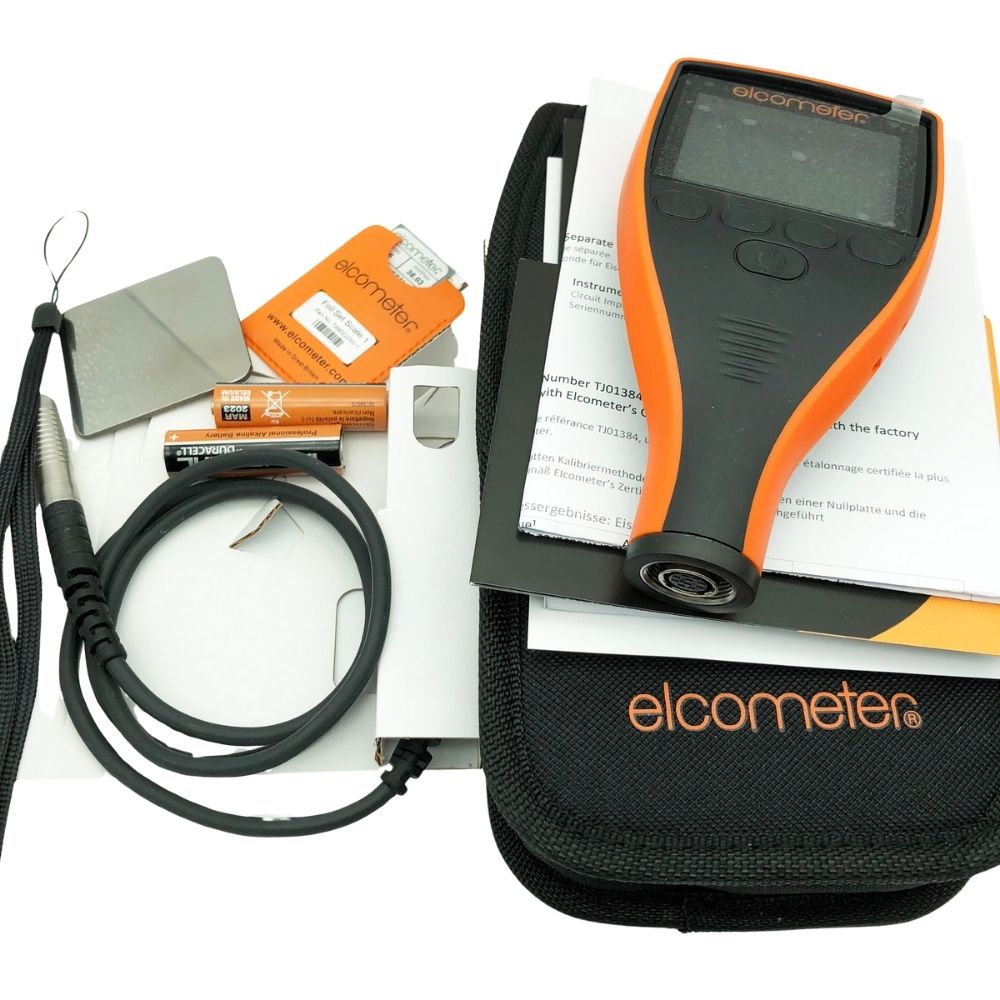

Package Includes

1 x Elcometer 456 Separate Gauge

1 x Protective Case

1 x Wrist Harness

2 x AA Batteries

1 x USB Cable

1 x ElcoMaster® Software

1 x Calibration Certificate

1 x User Manual

Downloads

📄 Download Elcometer 456 Data Sheet
📄 Download Elcometer 456 User Manual
