DH48S-1Z 2Z LED Programmable Delay Relay 0.01S-99990H With Socket Base Time Relay DC AC220V

The DH48S-1Z and DH48S-2Z are LED Programmable Delay Relays designed for accurate time control in various industrial automation and process control applications. These relays feature a wide timing range, high precision, and reliable performance, making them suitable for operations requiring precise delay settings.

Features
Timing Range: Adjustable from 0.01 seconds to 99990 hours.
Display: LED display for clear and easy reading of time settings.
Programming: Easy programming with user-friendly interface.
Relay Output: Available in single (1Z) and double (2Z) relay versions.
Power Supply: Compatible with DC and AC 220V power sources.
Socket Base: Comes with a socket base for easy installation and replacement.
Technical Specifications
Model: DH48S-1Z / DH48S-2Z
Timing Range: 0.01 seconds to 99990 hours
Supply Voltage: DC / AC 220V
Output Type: Relay output
Contact Capacity:
1Z: 5A 250VAC / 30VDC
2Z: 3A 250VAC / 30VDC
Operating Temperature: -10°C to +50°C
Mounting Type: Panel mount with socket base

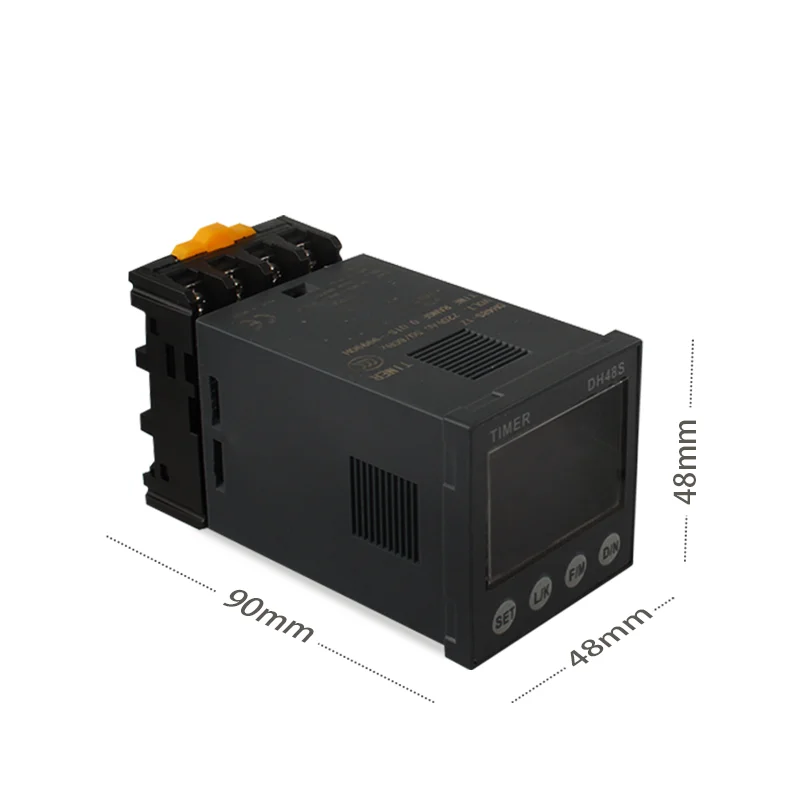

Dimensions: Typically around 48mm x 48mm x 80mm (may vary slightly depending on model and manufacturer)
Applications
Industrial Automation: Used in control panels for timing operations in manufacturing processes.
Process Control: Delays and sequencing in various process control systems.
Lighting Control: Time-based control for lighting systems.
HVAC Systems: Timing controls in heating, ventilation, and air conditioning systems.
Water Treatment: Delay operations in water treatment processes.
Benefits
High Precision: Accurate time delay settings improve process reliability.
Versatility: Wide timing range and compatibility with both DC and AC power sources.
Ease of Use: Simple programming and clear LED display.
Durability: Built to withstand industrial environments.
Installation and Usage
Mounting: Secure the relay in place using the provided socket base.
Wiring: Connect the power supply and load according to the wiring diagram provided in the manual.
Programming: Set the desired delay time using the programming buttons and confirm settings.
Operation: The relay will operate based on the programmed delay, activating or deactivating the connected load accordingly.
Package Includes
1 x DH48S-1Z or DH48S-2Z LED Programmable Delay Relay
1 x Socket Base
1 x User Manual
Ensure to consult the user manual for detailed wiring instructions and safety guidelines before installation and operation.

Important Notes
Always ensure the power is turned off before installation or wiring.
Verify the relay specifications match your application requirements.
Follow all local electrical codes and safety standards during installation and use.
