BLUE TECHNOLOGY DX-13-S-AL Coating Thickness Gauge
BLUE TECHNOLOGY DX-13-S-AL Coating Thickness Gauge
HOT LINE - 077 862 0567
Couldn't load pickup availability
The BLUE TECHNOLOGY DX-13-S-AL paint thickness gauge is a next-generation measuring instrument designed for precision evaluation of coatings on steel, galvanized steel, and aluminum substrates. As an advanced extension of the MGR-13 series, the DX-13 features a robust flat probe with a movable tip, ensuring highly accurate readings even on difficult surfaces.
Built with user-focused support systems, this device is especially suitable for automotive experts, quality inspectors, and even occasional users who require a reliable, easy-to-use coating thickness meter.
Unique Advantages
Has something others don’t have!
Equipped with advanced assistance systems, the DX-13-S-AL helps users accurately assess the true condition of vehicle bodies and industrial coatings.
Be a perfectionist!
Movable probe head minimizes measurement errors.
Ultra-fine resolution of 0.002 mm provides precision even in demanding applications.
Probe with clamp ensures correct placement during inspections.
Ready to work instantly!
Automatic substrate detection eliminates guesswork.
Clearly identifies aluminum, steel, and galvanized steel and displays results on the screen.
Personalized operation
Ergonomic housing for comfortable use.
16 operation modes for tailored functionality.
Built-in flashlight for low-light conditions.
2 measuring modes (single/continuous) for versatile applications.
Key Features
Automatic Substrate Identification: Detects AL, FE, and galvanized steel.
Wide Measuring Range:
Steel: 0–3000 µm
Galvanized Steel: 0–3000 µm
Aluminum: 0–2000 µm
High Accuracy & Resolution:
0–500 µm: ±2 µm
500–2000 µm: ±10 µm
2000+ µm: ±100 µm
Measurement Assistance:
Screen color indication
Audible signals
HOLD function
Display: 2.2-inch backlit LCD
Memory: Stores up to 200 readings
Power Efficiency: Runs on 2 × AAA (LR03) batteries, up to 50 hours of operation, auto power-off when idle.
Probe Design: Pressed flat probe with cable (800 mm length)
Durable Build: Lightweight at 160 g, compact size (67 × 22 × 112 mm).
Working Temperature: –20 °C to +40 °C
Technical Specifications
| Specification | Details |
|---|---|
| Measuring Range – Steel | 0–3000 µm |
| Measuring Range – Galvanized Steel | 0–3000 µm |
| Measuring Range – Aluminum | 0–2000 µm |
| Resolution | 0.002 mm |
| Accuracy (Steel 0–500 µm) | ±2 µm |
| Accuracy (Steel 500–2000 µm) | ±10 µm |
| Accuracy (Steel 2000+ µm) | ±100 µm |
| Accuracy (Aluminum 0–500 µm) | ±2 µm |
| Accuracy (Aluminum 500–2000 µm) | ±10 µm |
| Display | 2.2" LCD with backlight |
| Measurement Modes | 2 (Single / Continuous) |
| Operation Modes | 16 |
| Calibration | Manual |
| Power Supply | 2 × AAA (LR03) batteries |
| Battery Life | Up to 50 h |
| Auto Power Off | Yes |
| Weight | 160 g (with batteries) |
| Dimensions | 67 × 22 × 112 mm |
| Probe Cable Length | 800 mm |
| Operating Temperature | –20 °C to +40 °C |

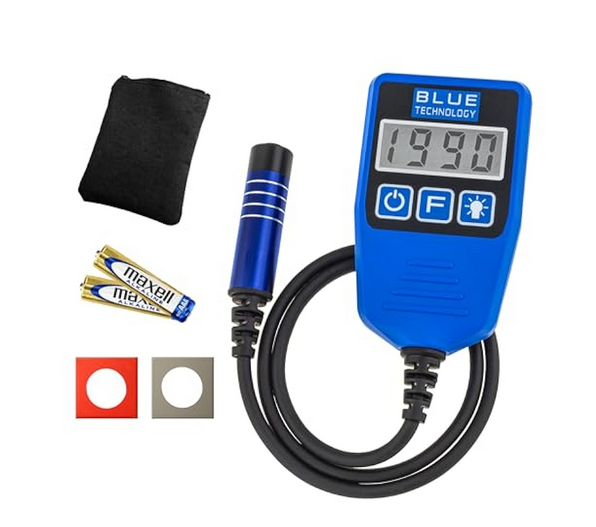

Standard Accessories
User manual
Warranty card
Protective cover
FE calibration plate
AL calibration plate
Applications
The DX-13-S-AL Coating Thickness Gauge is perfectly suited for industries and professionals where precision and reliability are critical:
Automotive industry – Paintwork inspection and accident damage detection.
Metal processing – Verification of coatings on steel, galvanized steel, and aluminum.
Quality inspection – Ensures compliance with protective coating standards.
Workshops & Used car dealerships – Quick detection of repainted or repaired panels.
