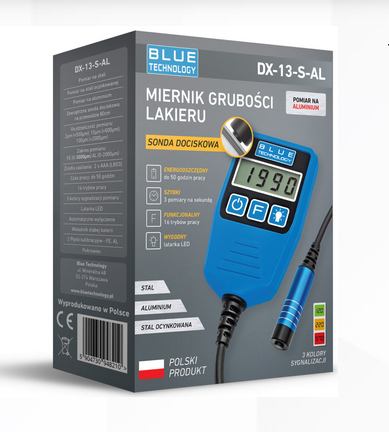

BLUE TECHNOLOGY DX-13-S-AL Coating Thickness Gauge

BLUE TECHNOLOGY DX-13-S-AL Paint Thickness Gauge in Sri Lanka

Next-Generation Gauge for Steel, Galvanized Steel & Aluminum

The BLUE TECHNOLOGY DX-13-S-AL is a next-generation paint thickness gauge designed for precision evaluation of coatings on steel, galvanized steel, and aluminum substrates. As an advanced successor to the MGR-13 series, the DX-13 features a robust flat probe with a movable tip, ensuring highly accurate and repeatable readings even on challenging or curved surfaces.

Looking for more options? Explore our full range of coating thickness gauges in Sri Lanka to compare models, specifications, and prices.

Equipped with automatic substrate detection and a high-resolution display, this device simplifies the inspection process for automotive experts, quality inspectors, and enthusiasts. Its user-friendly interface, assistance systems, and durable build make it a reliable and indispensable tool for verifying coating integrity and detecting repairs in any setting.

Key Features

Automatically identifies and measures on steel, galvanized steel, and aluminum substrates

Features a movable flat probe on an 800 mm cable for stable and precise measurements

Offers a wide measuring range of up to 3000 µm for steel and 2000 µm for aluminum

Delivers an ultra-fine measurement resolution of 2 µm for high-precision applications

Includes measurement assistance systems with screen color changes and audible alerts

Stores up to 200 readings in its internal memory for data review and analysis

Equipped with a large 2.2-inch backlit LCD for clear visibility in all lighting conditions

Provides up to 50 hours of continuous operation with a power-saving auto-off function

Features a built-in LED flashlight for inspecting surfaces in low-light environments

Technical Specifications

Model

DX-13-S-AL

Measuring Range (Steel)

0–3000 µm

Measuring Range (Aluminum)

0–2000 µm

Resolution

2 µm

Accuracy

±2 µm (for 0–500 µm range)

Substrate Type

Steel, Galvanized Steel, Aluminum (Auto-detection)

Probe

Pressed flat probe on an 800 mm cable

Memory

200 readings

Display

2.2-inch backlit LCD

Special Features

16 operating modes, LED flashlight, audio alerts

Power Supply

2 × AAA (LR03) batteries

Battery Life

Up to 50 hours

Operating Temperature

–20 °C to +40 °C

Dimensions

112 × 67 × 22 mm

Weight

160 g (with batteries)

Applications

Ideal for the automotive industry for professional paintwork inspection and accident damage detection

Ensures quality control in metal processing by verifying coatings on steel, galvanized steel, and aluminum

Provides reliable data for quality inspection to ensure compliance with protective coating standards

Enables quick and accurate detection of repainted or repaired panels in workshops and used car sales

Package Includes

1 x BLUE TECHNOLOGY DX-13-S-AL Gauge

1 x FE Calibration Plate

1 x AL Calibration Plate

1 x Protective Cover

1 x User Manual

2 x AAA Batteries
